Place of Origin:
Shandong, China
Brand Name:
sennai
Model Number:
001

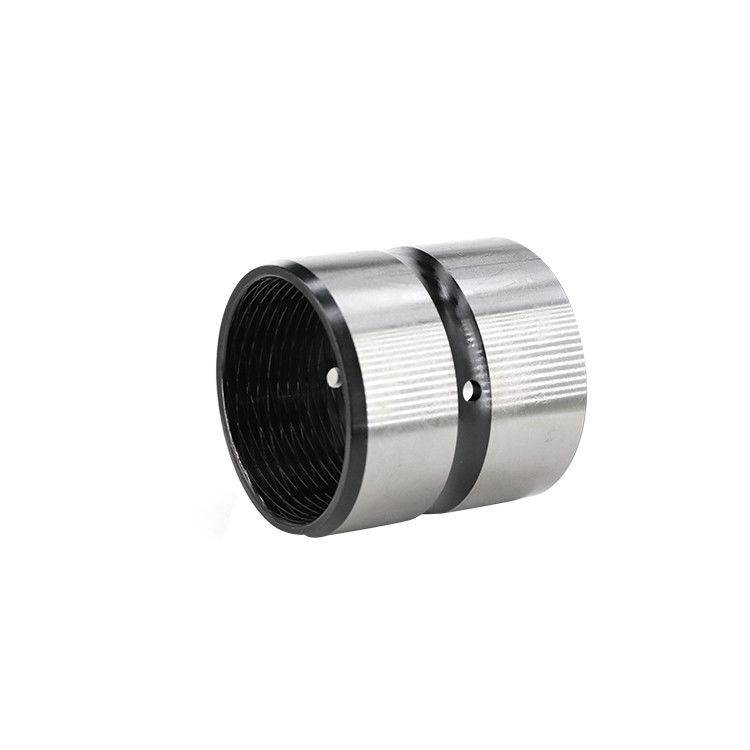

High Temperature Fired Bucket Bushing Collar Bushing Hardened Steel Bushing
Benefits of bucket bushings:
Wear reduction: Bucket bushings play a critical role in reducing wear between the bucket and the linkage or arm. They provide a bearing surface that allows smooth movement and minimizes metal-to-metal contact, thereby extending the lifespan of the bucket assembly.
Load-bearing capacity: Bucket bushings are designed to handle the loads and forces encountered during excavation or material handling operations. They provide support and stability to the bucket, ensuring efficient and reliable performance.
Improved operation: Properly functioning bucket bushings contribute to the smooth operation of the bucket, allowing precise control and maneuverability of the machine.
Compatibility: Bucket bushings are available in various sizes and designs to match different machine models and bucket configurations, ensuring compatibility and ease of replacement.
Performance Index
|
|
Data
|
|
Hardness
|
HRC
|
58-62
|
|
Max Load
|
N/mm2
|
250
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Performance Index
|
|
Data
|
|
Hardness
|
HV
|
≥650
|
|
Max Load
|
N/mm2
|
200
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Performance Index
|
|
Data
|
|
Hardness
|
HV
|
≥650
|
|
Max Load
|
N/mm2
|
200
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Material and bushing
characteristics |
|
value
|
Company
|
value
|
|
Maximum load
|
Mpa
|
100
|
psi
|
145,00
|
|
working temperature
|
℃
|
-40 to 300
|
°F
|
-40 to 572
|
|
Max Linear Velocity
|
m/s
|
0.5
|
fpm
|
100
|
|
Maximum PV Value
|
m/sxMPa
|
1.65
|
pis x fpm
|
48,000
|
|
Minimum hardness of sliding layer
|
HB
|
210
|
HB
|
210
|
|
Minimum hardness of dual parts
|
HRC
|
40
|
HRC
|
40
|
