Place of Origin:
Shandong, China
Brand Name:
sennai
Model Number:
Collar hydraulic cylinder bushing

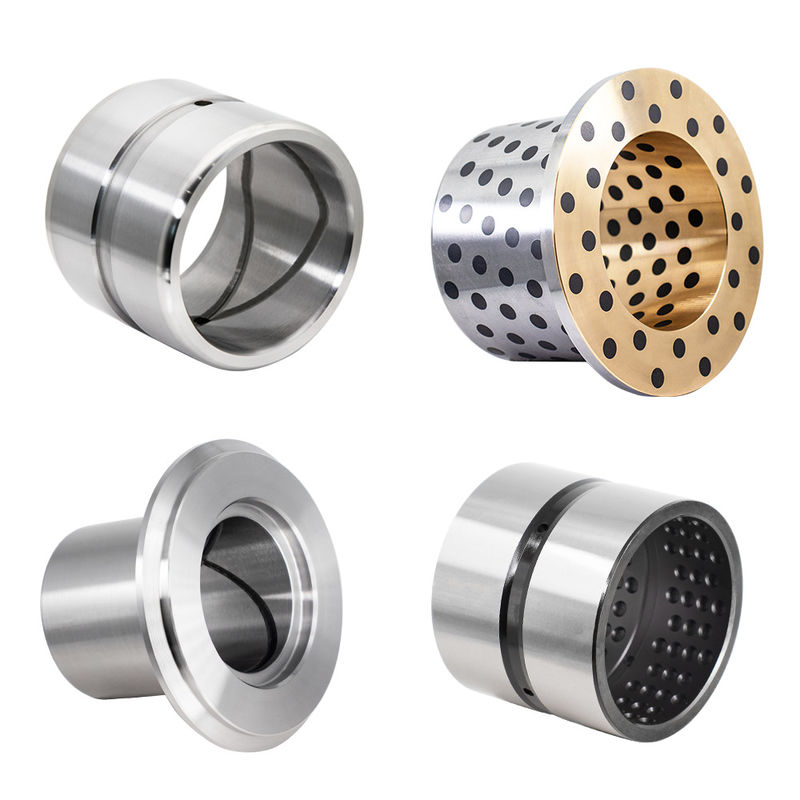

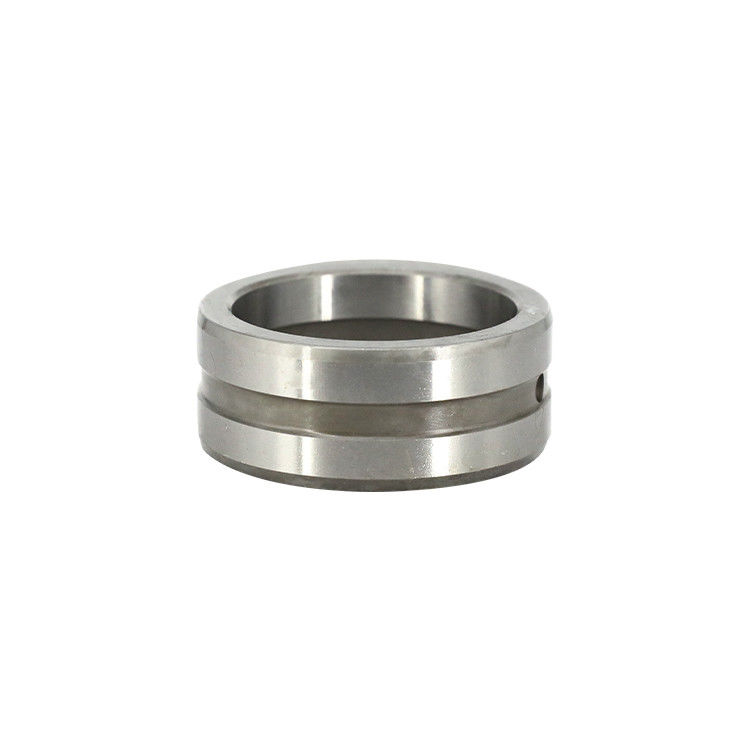

Professional Hydraulic Cylinder Bushing Collar Bushing 45mm-300mm OD
Our hydraulic cylinder bushing are used in critical components of a variety of mechanical equipment, including Construction works , Energy & Mining, Machinery Repair Shops, Manufacturing Plant, Other, Hotels, Garment Shops, Building Material Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Food & Beverage Shops, Advert. Their main function is to provide support and reduce wear to extend the service life of mechanical equipment. These hydraulic cylinder bushing sleeves are able to withstand high pressures and heavy loads and maintain their shape and size stability to ensure the proper operation of mechanical systems.
hydraulic cylinder bushing product description
1.Type:Bushing
2.Material:Steel
3.Model Number:hydraulic cylinder bushing
4.Product Name:Professional Hydraulic Cylinder Bushing Collar Bushing 45mm-300mm OD
5.Service:Customized Oem
6.Certification:Iso Rohs
7.Keyword:Collar Bushing
8.Color:Customized Color
9.Process:Precision Machining
10.Type:Flanged
11.Feature:Rustproof
12.OD:45mm-300mm
Performance Index
|
|
Data
|
|
Hardness
|
HRC
|
58-62
|
|
Max Load
|
N/mm2
|
250
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Performance Index
|
|
Data
|
|
Hardness
|
HV
|
≥650
|
|
Max Load
|
N/mm2
|
200
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Performance Index
|
|
Data
|
|
Hardness
|
HV
|
≥650
|
|
Max Load
|
N/mm2
|
200
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Material and bushing
characteristics |
|
value
|
Company
|
value
|
|
Maximum load
|
Mpa
|
100
|
psi
|
145,00
|
|
working temperature
|
℃
|
-40 to 300
|
°F
|
-40 to 572
|
|
Max Linear Velocity
|
m/s
|
0.5
|
fpm
|
100
|
|
Maximum PV Value
|
m/sxMPa
|
1.65
|
pis x fpm
|
48,000
|
|
Minimum hardness of sliding layer
|
HB
|
210
|
HB
|
210
|
|
Minimum hardness of dual parts
|
HRC
|
40
|
HRC
|
40
|
