Place of Origin:
Shandong, China
Brand Name:
sennai
Model Number:
Corrosion Protection excavator bushing

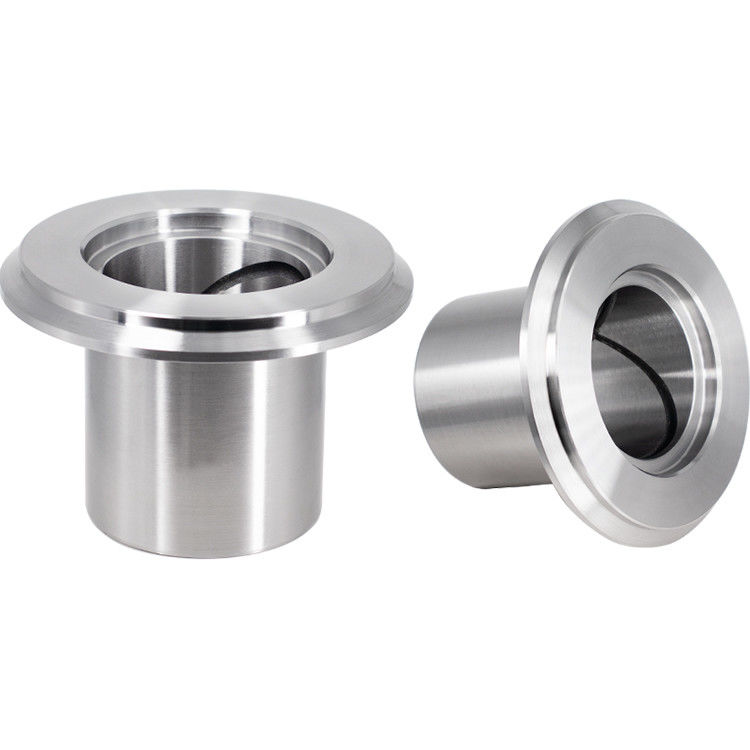

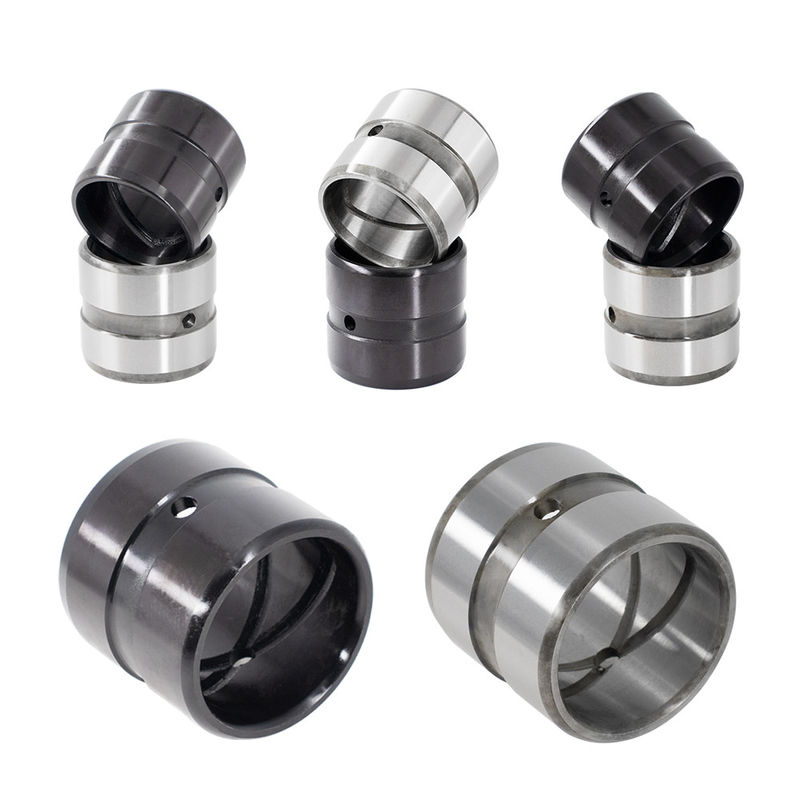

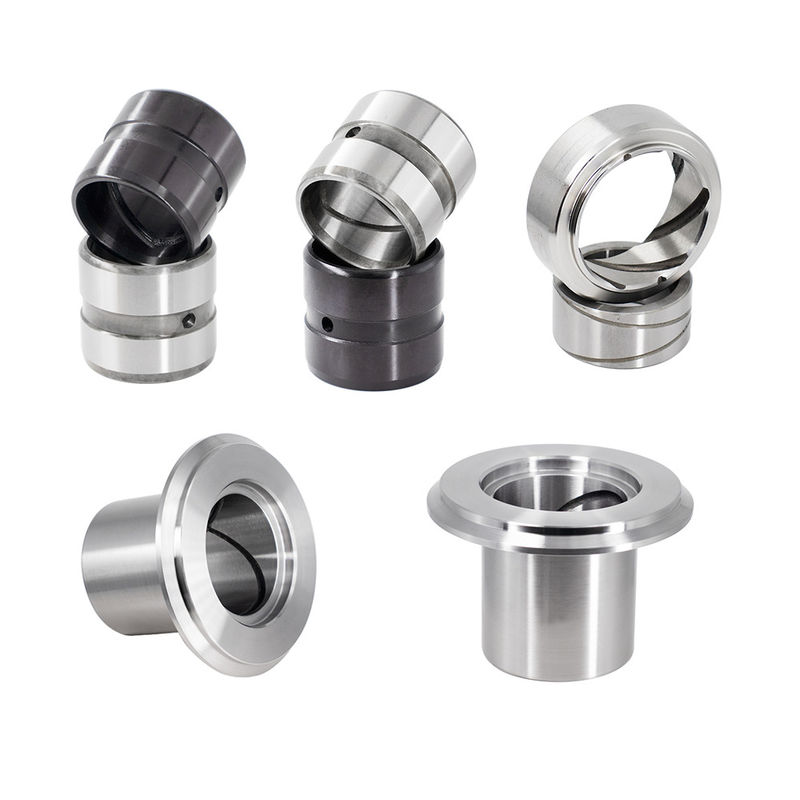

Hot Sale Hardened Steel Bushing Pin Bearing Excavator Bushing
Hardened steel sleeve bushings are manufactured using a process that involves hardening the steel material to increase its strength and wear resistance. The hardening process typically involves heating the steel to a specific temperature and then rapidly cooling it, resulting in a hardened surface layer known as case hardening or induction hardening.
Characteristics of excavator bushing
High Strength
Wear Resistance
Corrosion Resistance
Cost-Effective
Self-Lubricating
Good Plasticity
Corrosion Protection
Performance Index
|
|
Data
|
|
Hardness
|
HRC
|
58-62
|
|
Max Load
|
N/mm2
|
250
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Performance Index
|
|
Data
|
|
Hardness
|
HV
|
≥650
|
|
Max Load
|
N/mm2
|
200
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Performance Index
|
|
Data
|
|
Hardness
|
HV
|
≥650
|
|
Max Load
|
N/mm2
|
200
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Material and bushing
characteristics |
|
value
|
Company
|
value
|
|
Maximum load
|
Mpa
|
100
|
psi
|
145,00
|
|
working temperature
|
℃
|
-40 to 300
|
°F
|
-40 to 572
|
|
Max Linear Velocity
|
m/s
|
0.5
|
fpm
|
100
|
|
Maximum PV Value
|
m/sxMPa
|
1.65
|
pis x fpm
|
48,000
|
|
Minimum hardness of sliding layer
|
HB
|
210
|
HB
|
210
|
|
Minimum hardness of dual parts
|
HRC
|
40
|
HRC
|
40
|
