Place of Origin:
Shandong, China
Brand Name:
sennai
Model Number:
001

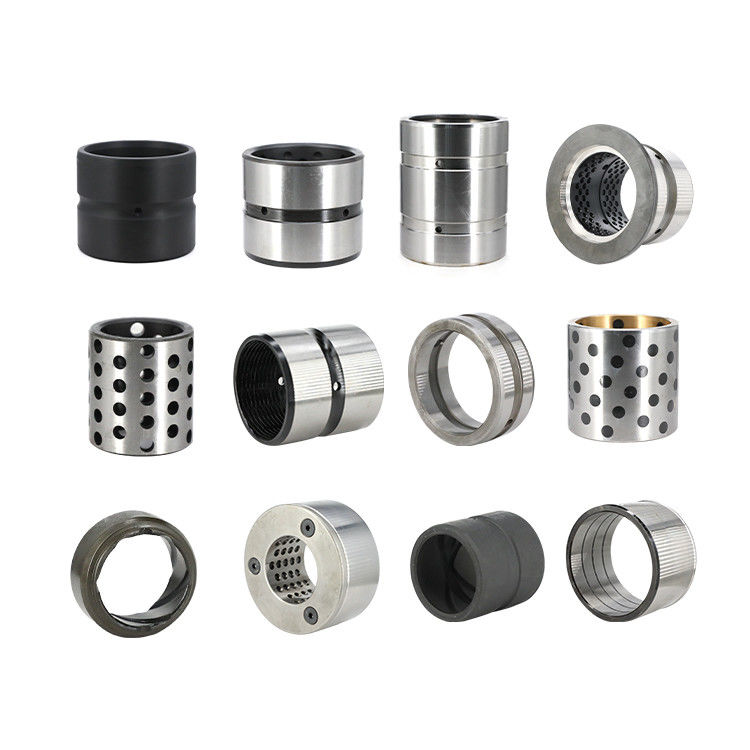

Professional Manufacturing Of Steel Bushing Excavator And Wheel Loader Parts
Excavator bushings or excavator bearings are parts that are specially designed for the use in excavator buckets and excavator arms. While the entire machine uses bushings, the name excavator bushing is specifically reserved for the bushings found in the excavator arm and bucket. These bushings are very important in the overall functionality of the excavator, as they carry heavy loads and ensure the smooth and sturdy movement of the excavator’s arm.
Features of an Excavator Bushing
Wear resistance: Due to their hardened surface, these bushings exhibit excellent resistance to wear and abrasion. They can operate in environments with high levels of friction and repetitive motion without significant deterioration.
Durability: Hardened steel bushings are designed to have a long service life, even under demanding conditions. They can withstand repeated use, shocks, and impacts without deformation or failure.
Low friction: The hardened surface of these bushings helps reduce friction between the bushing and the mating component, such as a shaft or rod. This results in smoother movement and improved efficiency.
Performance Index
|
|
Data
|
|
Hardness
|
HRC
|
58-62
|
|
Max Load
|
N/mm2
|
250
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Performance Index
|
|
Data
|
|
Hardness
|
HV
|
≥650
|
|
Max Load
|
N/mm2
|
200
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Performance Index
|
|
Data
|
|
Hardness
|
HV
|
≥650
|
|
Max Load
|
N/mm2
|
200
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Material and bushing
characteristics |
|
value
|
Company
|
value
|
|
Maximum load
|
Mpa
|
100
|
psi
|
145,00
|
|
working temperature
|
℃
|
-40 to 300
|
°F
|
-40 to 572
|
|
Max Linear Velocity
|
m/s
|
0.5
|
fpm
|
100
|
|
Maximum PV Value
|
m/sxMPa
|
1.65
|
pis x fpm
|
48,000
|
|
Minimum hardness of sliding layer
|
HB
|
210
|
HB
|
210
|
|
Minimum hardness of dual parts
|
HRC
|
40
|
HRC
|
40
|
