Place of Origin:
Shandong, China
Brand Name:
sennai
Model Number:
001

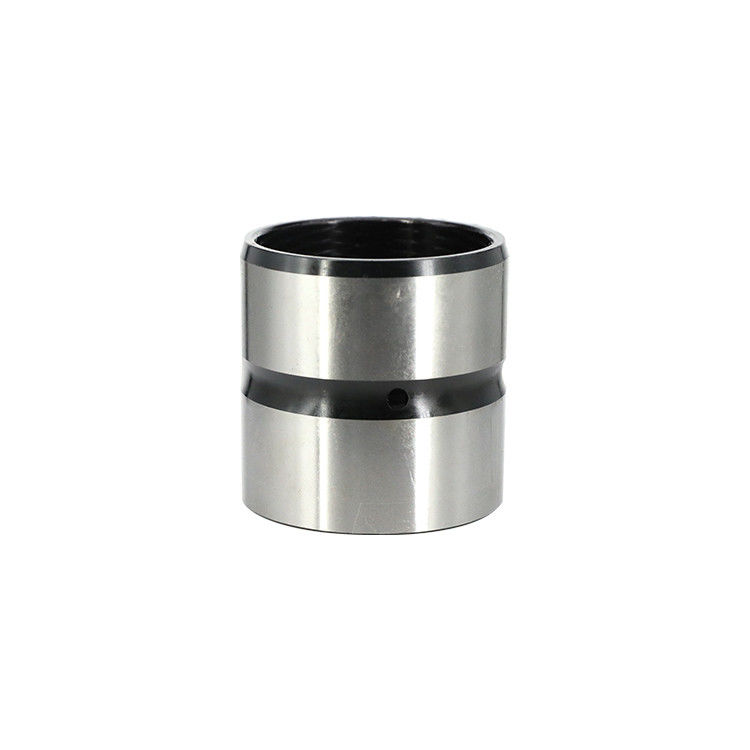

Customized High-Quality And Stable Bimetallic Bushing Bearing Steel Bushing Steel Hardened Bushing
A bushing is a type of mechanical component used in industrial equipment to provide support and reduce friction between two moving parts. It is typically a cylindrical sleeve made of metal, plastic, or rubber that is placed inside a housing or a casing.
The main function of a bushing is to act as a bearing surface between two parts that move relative to each other. It helps to reduce friction and wear by providing a smooth, low-friction surface for the moving parts to slide against. This not only extends the lifespan of the equipment but also improves its performance and efficiency.
Bushings are commonly used in various industrial equipment and machinery, such as pumps, motors, engines, transmissions, and generators. They can be found in many different applications, including automotive, aerospace, construction, manufacturing, and mining industries.

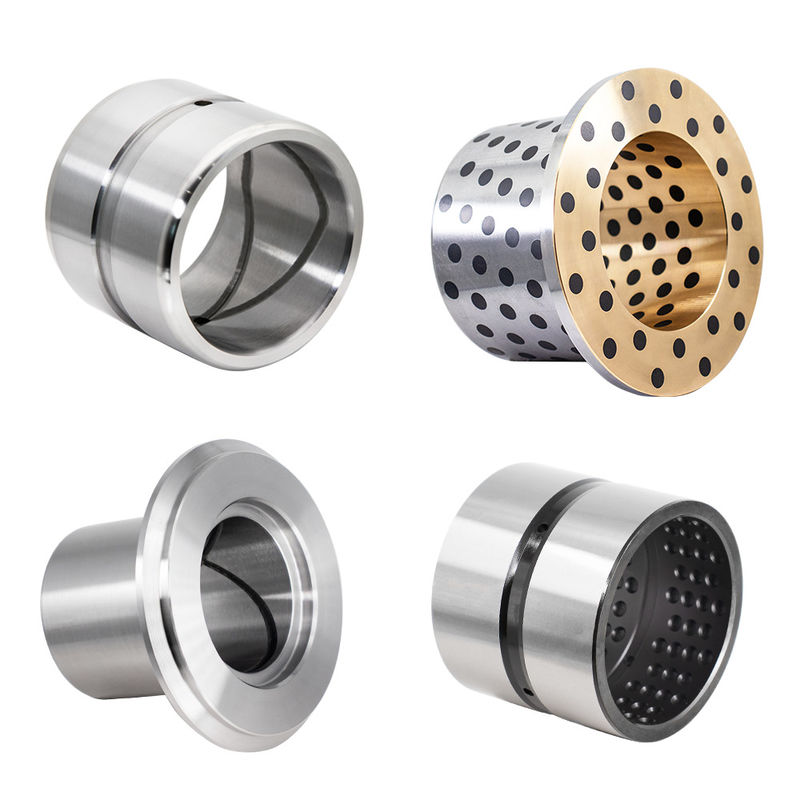

Different types of bushings are available to suit different application requirements. Some common types include plain or sleeve bushings, flanged bushings, spherical bushings, thrust washers, and self-lubricating bushings. The material used for bushings can vary based on factors such as load capacity, temperature, and chemical resistance.
Friction reduction: Hydraulic cylinder bushings reduce friction between the moving parts of the cylinder, allowing smooth operation and minimizing wear.
Wear resistance: The materials used in hydraulic cylinder bushings are selected for their wear resistance, ensuring longevity and reliability even under high loads and continuous use.
Load-bearing capacity: Hydraulic cylinder bushings are designed to handle the loads and pressures exerted within the cylinder, providing support and stability to the moving components.
Corrosion resistance: Depending on the material chosen, hydraulic cylinder bushings can offer good resistance to corrosion, making them suitable for use in various environments, including those with exposure to moisture or harsh conditions.
Performance Index
|
|
Data
|
|
Hardness
|
HRC
|
58-62
|
|
Max Load
|
N/mm2
|
250
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Performance Index
|
|
Data
|
|
Hardness
|
HV
|
≥650
|
|
Max Load
|
N/mm2
|
200
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Performance Index
|
|
Data
|
|
Hardness
|
HV
|
≥650
|
|
Max Load
|
N/mm2
|
200
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Material and bushing
characteristics |
|
value
|
Company
|
value
|
|
Maximum load
|
Mpa
|
100
|
psi
|
145,00
|
|
working temperature
|
℃
|
-40 to 300
|
°F
|
-40 to 572
|
|
Max Linear Velocity
|
m/s
|
0.5
|
fpm
|
100
|
|
Maximum PV Value
|
m/sxMPa
|
1.65
|
pis x fpm
|
48,000
|
|
Minimum hardness of sliding layer
|
HB
|
210
|
HB
|
210
|
|
Minimum hardness of dual parts
|
HRC
|
40
|
HRC
|
40
|
