High Precision Cnc Machining Shaft Sleeve Bushing 1/2 Inch Steel Bushing

High Precision Cnc Machining Shaft Sleeve Bushing 1/2 Inch Steel Bushing

Cnc Machining Shaft Sleeve Bushing

High Precision 1/2 Inch Steel Bushing

High Precision Shaft Sleeve Bushing

Place of Origin:

Shandong, China

Brand Name:

sennai

Model Number:

001

Contact Us
Request A Quote
Product Details
Features:
Wear Resistance
Applicable Industries:
Construction Works , Energy & Mining, Machinery Repair Shops, Manufacturing Plant, Other, Hotels, Garment Shops, Building Material Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Food & Beverage Shops, Advert
Type:
Bushing
Material:
Steel
Product Name:
Bushing Sleeve
Size:
Customized Size
Bush Types:
Flange
Application:
Industrial Equipment
Lubricating:
Carbon
Product Material:
Steel+Porous Bronze+PTFE
Standard:
DIN1494
Surface Treatment:
Phosphating Black
Product Shape:
Customized Bushing
Payment & Shipping Terms
Minimum Order Quantity
100 pieces
Price
$0.80/pieces 100-499 pieces
Packaging Details
Plastic packaging
Supply Ability
2000 Piece/Pieces per Day
Product Description

High Precision Customized Cnc Machining Of Shaft Sleeve Hardened Sleeve Steel Bushing



A shaft sleeve bushing, also known as a shaft sleeve or shaft bearing, is a cylindrical component that provides support and reduces friction between a rotating shaft and its housing or bearing. It is typically made of a self-lubricating material, such as bronze or a composite material, to allow smooth rotation while minimizing wear.

Benefits of shaft sleeve bushings:

  1. Friction reduction: Shaft sleeve bushings are designed to reduce friction between the rotating shaft and housing, minimizing wear and extending the life of the components.

  2. Self-lubrication: Many shaft sleeve bushings are self-lubricating, which means they have embedded lubricants or are made from materials that inherently provide lubrication. This reduces the need for additional lubrication and maintenance.

  3. Noise and vibration reduction: The smooth rotation facilitated by shaft sleeve bushings helps reduce noise and vibration in rotating systems, enhancing overall performance and user comfort.

High Precision Cnc Machining Shaft Sleeve Bushing 1/2 Inch Steel Bushing 0
Performance Index

Data
Hardness
HRC
58-62
Max Load
N/mm2
250
Max Linear Velocity
m/s
0.1
Max PV Value
N/mm2.m/s
1.5
WorkingTemperature Limit
-100~ +350
Linear Expension Coefficient
10-5/℃
1.1
High Precision Cnc Machining Shaft Sleeve Bushing 1/2 Inch Steel Bushing 1

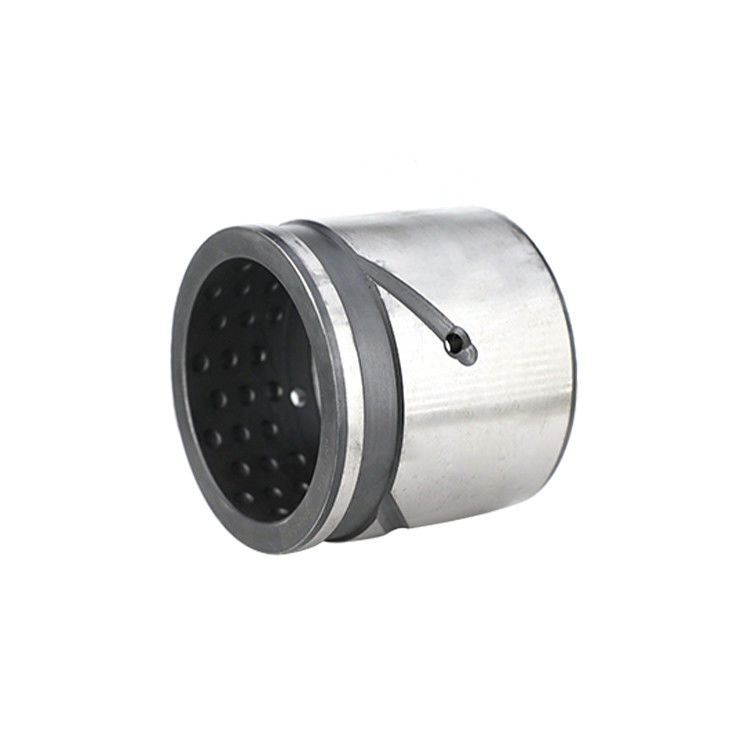

blind hole oil storage steel bushing
High Precision Cnc Machining Shaft Sleeve Bushing 1/2 Inch Steel Bushing 2
Performance Index

Data
Hardness
HV
≥650
Max Load
N/mm2
200
Max Linear Velocity
m/s
0.1
Max PV Value
N/mm2.m/s
1.5
WorkingTemperature Limit
-100~ +350
Linear Expension Coefficient
10-5/℃
1.1
SN-X Mesh steel bushing
High Precision Cnc Machining Shaft Sleeve Bushing 1/2 Inch Steel Bushing 3
Performance Index

Data
Hardness
HV
≥650
Max Load
N/mm2
200
Max Linear Velocity
m/s
0.1
Max PV Value
N/mm2.m/s
1.5
WorkingTemperature Limit
-100~ +350
Linear Expension Coefficient
10-5/℃
1.1
SN-B Bimetallic composite self-lubricating bushing
High Precision Cnc Machining Shaft Sleeve Bushing 1/2 Inch Steel Bushing 4
Material and bushing
characteristics

value
Company
value
Maximum load
Mpa
100
psi
145,00
working temperature
-40 to 300
°F
-40 to 572
Max Linear Velocity
m/s
0.5
fpm
100
Maximum PV Value
m/sxMPa
1.65
pis x fpm
48,000
Minimum hardness of sliding layer
HB
210
HB
210
Minimum hardness of dual parts
HRC
40
HRC
40
High Precision Cnc Machining Shaft Sleeve Bushing 1/2 Inch Steel Bushing 5
High Precision Cnc Machining Shaft Sleeve Bushing 1/2 Inch Steel Bushing 6
High Precision Cnc Machining Shaft Sleeve Bushing 1/2 Inch Steel Bushing 7
High Precision Cnc Machining Shaft Sleeve Bushing 1/2 Inch Steel Bushing 8
Related Products

High Precision Cnc Machining Shaft Sleeve Bushing 1/2 Inch Steel Bushing 9
Company Profile
High Precision Cnc Machining Shaft Sleeve Bushing 1/2 Inch Steel Bushing 10
High Precision Cnc Machining Shaft Sleeve Bushing 1/2 Inch Steel Bushing 11
Packaging &Logistics
High Precision Cnc Machining Shaft Sleeve Bushing 1/2 Inch Steel Bushing 12
FAQ
Why choose us?
a. With experiences over 10 years.
b. Strict inspection and high quality with reasonable price.
c. OEM and ODM service provided.
d. Delivery time is short and on-time.
We can give you the direct factory price without broker. Our products are cost-effective with 100% QC quality assurance before shipment. We have our own design team and advanced high-precision machines and testing equipment.

What kinds of products you supply?
Main products are bushing,pin,,shim washers,etc, as per customers' drawings or samples.

Can I have a sample order or trail order?
Yes, it is available to check quality first. Mixed samples are also acceptable.

What about the lead time or delivery time?
In stock: 1-3 days. Usually in 24 hours.
Out of stock: 3-7 days for samples, 3-4 weeks for mass production. It's according to your quantity, and we will let you know when we quote.

What is your payment method?
We accept T/T, Western Union, L/C, credit card or via ALIBABA Assurance order.

Do you support special customized product (OEM or ODM)?
Of course, our company has experienced and professional engineers and possess a number of testing equipment. It can meet all customized requirements of customers while ensuring product quality.

What's your MOQ?
We will indicate the MOQ for each item in the quotation sheet.Normally, our minimum order is USD5000, one 20'
full container load and LCL container (less than a container load) can be acceptable.We accept the sample and trial order. If the quantity of single item can't reach the MOQ, the price should be sample price.

What's about the quality of you products?
We are specialized in high quality products and make products according to drawings and samples strictly to meet your 100% satisfaction.

Are you a trader or a manufacturer?
We are a factory-based and trade integration company, always professional and reliable. Our factory is located in Shandong Liaocheng, and our sales department is in the City centre of Jinan. The distance is 150Km, 1.5
hours. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.

How can I be sure the part will fit my machine?
Pls try to give us as much of the following info as possible:
- Correct model number
- Part number
- Machine serial number
- Any numbers on the part itself
- Any measurements you are able to get.
Or just give us drawing.

What about your Quality Control?
We produce as per the confirmed technology or drawings for each order for our customers. We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece carefully,monitor every production process until packing is complete, to ensure products safety into the container.

May I have my order working schedule?
Yes, we will send working schedule of your order each week. We will inspect and test all merchandise in case of damaging and missing parts before shipment.The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.

Do you like to serve the customers only with small orders?
We are always glad to grow up together with all our customers whatever big or small. We hope our customers become stronger and stronger to be with us.

What's package of your products?
We can provide standard export package with wooden box or carton, of course, customized package according your requirement is available.

What's the terms of the trasaction?
Usually we adopt EXW or FOB, and FCA, FAS, CIF, CIP, DDP and other method is available as your requirements.

Do you provide free samples?
Yes, usually we provide free samples for testing under the condition of gurantee deposit and freight paid by customer, but can be returned after the order is placed.

How long can I get some samples for checking and what about the price?
Normally samples will be done within 1-2 days (automatic machining parts) or 3-5 day (cnc machining parts). The sample cost depends on all information (size, material, finish, etc.). We will return the sample cost if your order quantity is good.

When inspecting steel bushing, what should we need to consider?
1. Whether the surface treatment is smooth
2. Accuracy
3. Hardness

Your product certifications?
ISO 9001:2008, ISO14001, RoHS

What is the warranty for our products?
One year from the date of leaving the factory, our company is solely responsible for after-sales service for product quality problems that are not caused by improper use, improper storage or human reasons.
