Name: OEM 42CrMo Hardened Steel Sleeve Bushing Bearings For Wheel Loader
Brand: OEM 42CrMo Hardened Steel Sleeve Bushing Bearings For Wheel Loader
SKU: OEM 42CrMo Hardened Steel Sleeve Bushing Bearings For Wheel Loader
Price: 0.75 USD
Availability: InStock
Rating: 4.7 (105 reviews)

Home > products > Custom Steel Bushings >

OEM 42CrMo Hardened Steel Sleeve Bushing Bearings For Wheel Loader

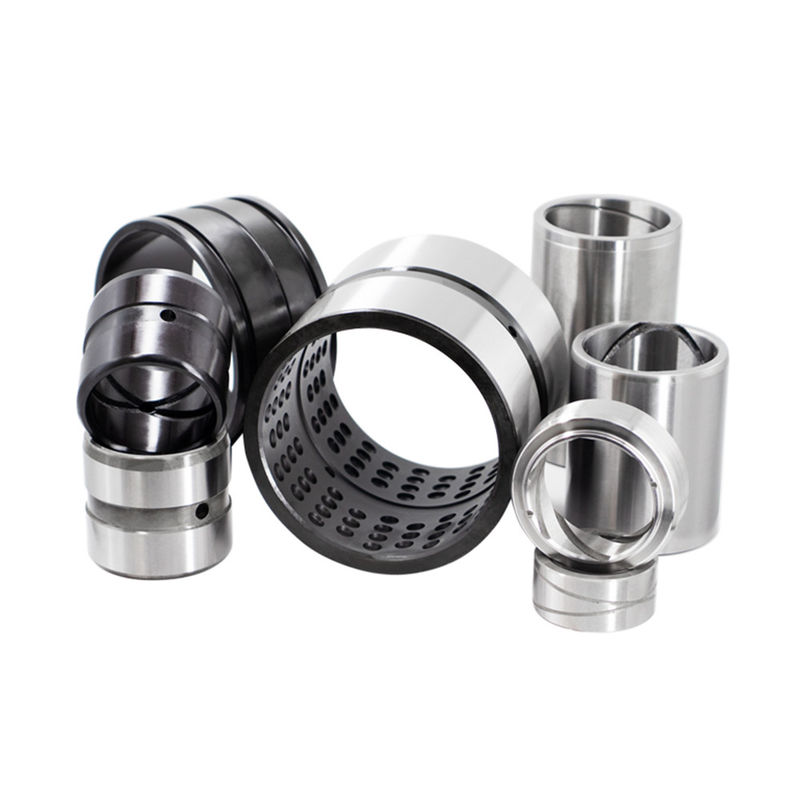

42CrMo Hardened Steel Sleeve Bushing

OEM hardened steel sleeve bushings

42CrMo steel sleeve bearings

Place of Origin:

China

Request A Quote

Product Details

Features:

Wear Resistance

Applicable Industries:

Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Printing Shops, Construction Works , Energy & Mining, Other, Advertising Company

Showroom Location:

Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Russia, Spain, Thailand, Morocco, Kenya, South Korea, Chile, UAE, Colombia, Algeria, Romania, Bangl

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

New Product 2020

Warranty:

Unavailable

Product Name:

Bushing

Size:

Customized Size

Bush Types:

Flange

Application:

Industrial Equipment

Lubricating:

Carbon

Product Material:

Steel+Porous Bronze+PTFE

Standard:

DIN1494

Surface Treatment:

Phosphating Black

Product Shape:

Customized Bushing

Port:

Qingdao

Payment & Shipping Terms

Minimum Order Quantity

20 pieces

Price

$0.75 - $200.00/pieces

Packaging Details

Plastic packaging

Supply Ability

2000 Piece/Pieces per Day

Rotary Drilling Rig Machine Personalized Steel Bearings Sleeves

Get Best Price

Video

Wear Resistance HRC58-62 Custom Steel Bushings Strong Internal Toughness

Get Best Price

Video

Wear Resistant Self Lubricating Grooved Bushing Rotating Steel Bushing Stock

Get Best Price

Video

Tube Sany Drilling Rig Custom Steel Sleeves Durable

Get Best Price

400-6962-025

Contact Now

Product Description

steel bushing for wheel loader

A hardened steel sleeve bushing is a type of bushing made from hardened steel material to provide increased durability, wear resistance, and load-bearing capabilities. It is commonly used in applications where there is high friction or heavy loads, requiring a robust and long-lasting component.

Here are some key aspects related to hardened steel sleeve bushings:

Material: Hardened steel sleeve bushings are typically made from steel alloys that undergo a hardening process to enhance their mechanical properties. Common steel grades used for hardened bushings include tool steel (e.g., D2, A2), bearing steel (e.g., 52100), or alloy steel (e.g., 4140).

Hardening process: The hardening process involves subjecting the steel material to heat treatment, which usually includes heating it to a specific temperature and rapidly cooling it. This process alters the steel's microstructure, resulting in increased hardness and strength.

Design considerations: When specifying a hardened steel sleeve bushing, important design factors to consider include the inner diameter (ID), outer diameter (OD), length, tolerances, surface finish, and any specific features required for proper installation or integration into the application.

SN-H Steel Bushing

SN-H Steel Bushing

The inner surface of SN-H steel bushing bearing is processed with various types of oil grooves, which improves the surface hardness and wear resistance after heat treatment. It is suitable for heavy-duty joint parts of construction machinery such as excavators, rotary drilling rigs, large loaders, wall grab and so on.

The steel bushing bearing of our company is based on 45#, 40Cr, 20CrMo, GCr15 and other materials. From raw materials to finished products, each process is strictly controlled to ensure the product quality. It produces bushing with high wear resistance, high surface hardness and strong internal toughness.

Performance Index			Data
Hardness	HRC	58-62
Max Load	N/mm2	250
Max Linear Velocity	m/s	0.1
Max PV Value	N/mm2.m/s	1.5
WorkingTemperature Limit	℃	-100~ +350
Linear Expension Coefficient	10-5/℃	1.1

Optional Material

42CrMo-Super high strength steel

40Cr-Medium carbon quenched and tempered steel

20CrMo/20CrMnTi-Low carbon alloy steel

Gcr15-Bearing steel

45#-Carbon steel

A variety of product materials can be customized to meet your different product needs

Optional Styles:

Optional Specifications

We can customize the product according to the customer’s drawings, process, tolerance requirements, style and quantity. The following is the processing scope. Please contact pre-sale customer service for specific dimensions.

blind hole oil storage steel bushing

blind hole oil storage steel bushing

The inner surface of the blind hole oil storage steel bushing is sprayed with molybdenum disulfide, which has the advantages of
low friction coefficient and good wear resistance, and can work under the condition without oil or with little oil. Products are
widely used in construction machinery, heavy duty high load equipment.

Process: Multipurpose furnace carburizing

Thickness of carburized layer:1.5-2.0mm

Hardness of carburized layer:HRC60--62

Molybdenum disulfide spraying on inner surface

Performance Index			Data
Hardness	HV	≥650
Max Load	N/mm2	200
Max Linear Velocity	m/s	0.1
Max PV Value	N/mm2.m/s	1.5
WorkingTemperature Limit	℃	-100~ +350
Linear Expension Coefficient	10-5/℃	1.1

Product Advantages

The inner wall of the bushing is evenly distributed with blind holes with conical cross-section.

The lubricating oil wedge is formed naturally during the grinding process of the inner hole of the bushing

The oil storage capacity of oil pocket is large, which is 3~5 times of that of ordinary oil tank and can be free from maintenance for a long time.

The oil pockets are evenly distributed on the inner wall, and the center distance of the oil pockets in the circumferential direction is fixed. No matter how large the bushing is, it only needs a small rotation angle to fill the inner surface of the bushing with the oil cloth, without lubrication dead area.

The oil pockets evenly distributed in the inner holes do not damage the bearing capacity of the inner wall of the bushing and prolong the service life of the bushing.

Material: 20CrMnTi, 20CrMo and other low carbon alloy steels Surface treatment: Molybdenum disulfide spraying

SN-X Mesh steel bushing

Due to the combination of double surface treatment and special surface morphology, the mesh bushing has excellent wear resistance and seizure resistance. This cross hatch morphology provides a grease reservoir in the load area and can remove abrasive particles. They are suitable for working under harsh working conditions: High pressure, wear, impact and corrosion. Mesh sleeves are alternatives without cross-hatches. They provide excellent performance under high static loads (low dynamic pressures) and small oscillations (wear resistance and seizure resistance...)

Performance Index			Data
Hardness	HV	≥650
Max Load	N/mm2	200
Max Linear Velocity	m/s	0.1
Max PV Value	N/mm2.m/s	1.5
WorkingTemperature Limit	℃	-100~ +350
Linear Expension Coefficient	10-5/℃	1.1

SN-B Bimetallic composite self-lubricating bushing

The bimetallic self-lubricating graphite copper bushing is based on low carbon steel, and the inner surface is Tin Phosphorus Bronze, the thickness can be customized 0.5-5mm. The ZCuSn10P1 tin-phosphorus bronze has high hardness and wear resistance. It can be used to manufacture parts that work under heavy load, high speed and high temperature, and the copper bushing is subject to strong friction. The surface of the bimetallic self-lubricating graphite bushing is inlaid with a special formula of solid lubricant at a certain angle and density, which is precisely processed, so that the copper bushing has the advantages of high wear resistance, high hardness and high toughness.

Material and bushing characteristics			value	Company	value
Maximum load	Mpa	100	psi	145,00
working temperature	℃	-40 to 300	°F	-40 to 572
Max Linear Velocity	m/s	0.5	fpm	100
Maximum PV Value	m/sxMPa	1.65	pis x fpm	48,000
Minimum hardness of sliding layer	HB	210	HB	210
Minimum hardness of dual parts	HRC	40	HRC	40

The bimetallic self-lubricating graphite copper bushing is a novel lubricating bearing with the characteristics of metal bearing and self-lubricating bearing. It is loaded by metal matrix, and the solid lubricating material with special formula plays a lubricating role. It has the characteristics of high bearing capacity, impact resistance, high temperature resistance and strong self-lubricating capability. It is especially suitable for occasions that are difficult to lubricate and form oil membrane, such as heavy load, low speed, reciprocating or swinging, and it is also not afraid of water erosion and erosion of other acids.

Seamless steel pipe products and forging services

We provide various types of finish rolled seamless steel pipe products

1.Various specifications of steel pipe 2.Various steel pipe materials 3.Large inventory 4.Supply chain stability

Scope of sale

Our products are exported to more than 120 countries and regions, providing supporting services for many well-known construction machinery and equipment manufacturers at home and abroad, and providing OEM/ODM services for nearly 100 trading companies every year.

Production Process

About US

Shandong Sennai Intelligent Technology Co., Ltd. is located in Jinan City, Shandong Province. Its factory is located in Liaocheng, Shandong Province. It is a professional manufacturer of self-lubricating bearing manufacturing-industry and trade enterprise integrating scientific research, production, sales and technical service. It has 15 years of industry experience and global sales channels. It provides supporting services for many well-known construction machinery and equipment manufacturers at home and abroad, and provides OEM/ODM services for nearly 100 trading companies every year.

The factory has vertical and horizontal machining center equipment and professional and technical personnel team, high efficiency, strong comprehensive ability, can complete the shape of complex, high precision requirements of the single processing. And has a perfect staff skills training system, talent selection training plan.

Thickness of carburizing layer:1.0-1.2mm

Surface hardness:hrc58 - 62

We have a rich cluster of heat treatment equipment, complete solutions to various steel heat treatment problems and rigorous quality control systems. We can heat treat various precision components, and can accurately control the hardening depth and hardness of carburizing. The technicians conduct in-depth experimental research on each work-piece to ensure that the hardness, strength, plasticity and toughness of the different materials are optimized after tempering. Make the metallographic structure tend to be stable and ensure that no deformation occurs in later use process.

Professional QC quality inspection team shall be responsible for the overall work of the department and organize implementation of relevant quality management regulations. Report batch quality problems timely, timely provide the information of unqualified products, and dispose unqualified products to ensure that the product quality meets the requirements.

Product Testing R&D Center

Partner Customers
