Place of Origin:
China
Model Number:
Undercarriage bushings for excavators

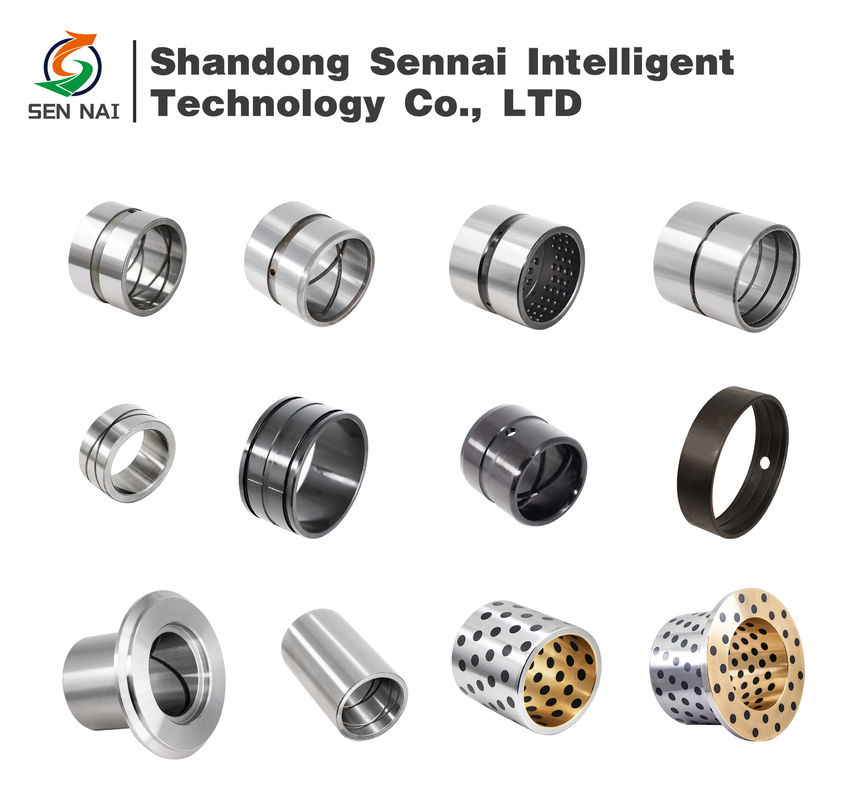

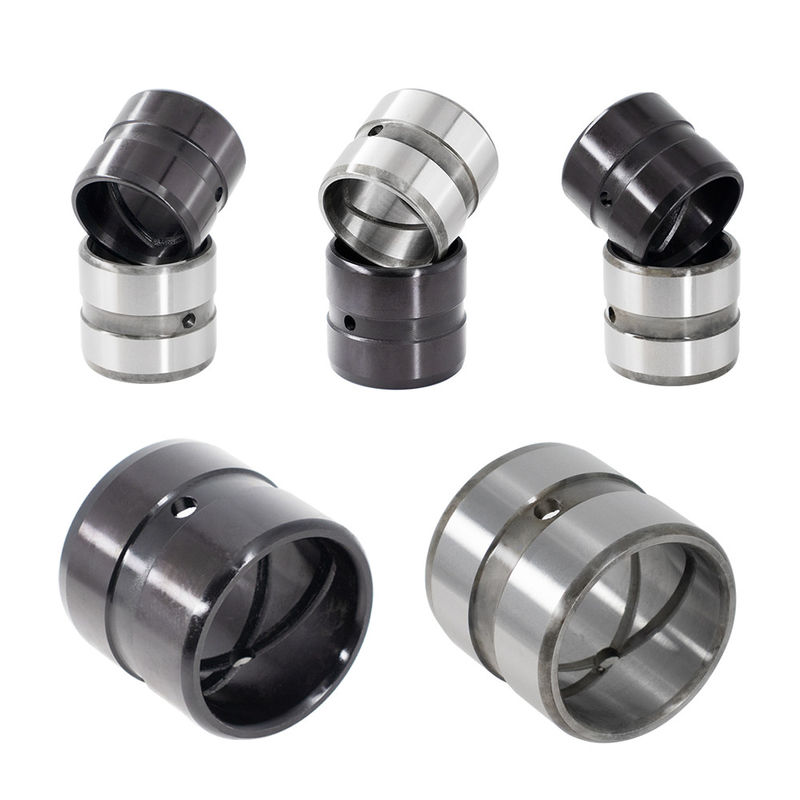

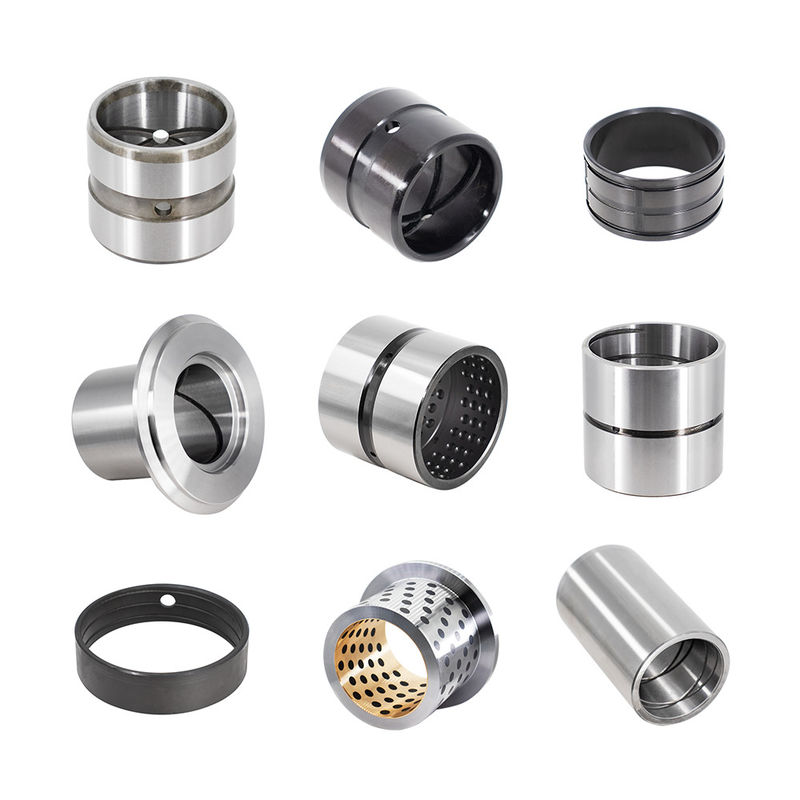

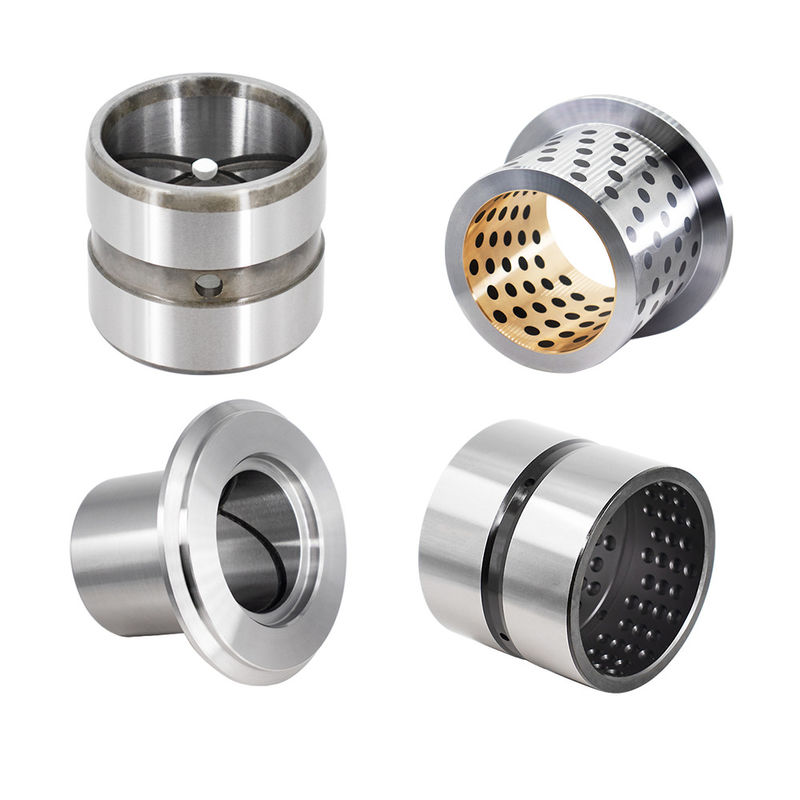

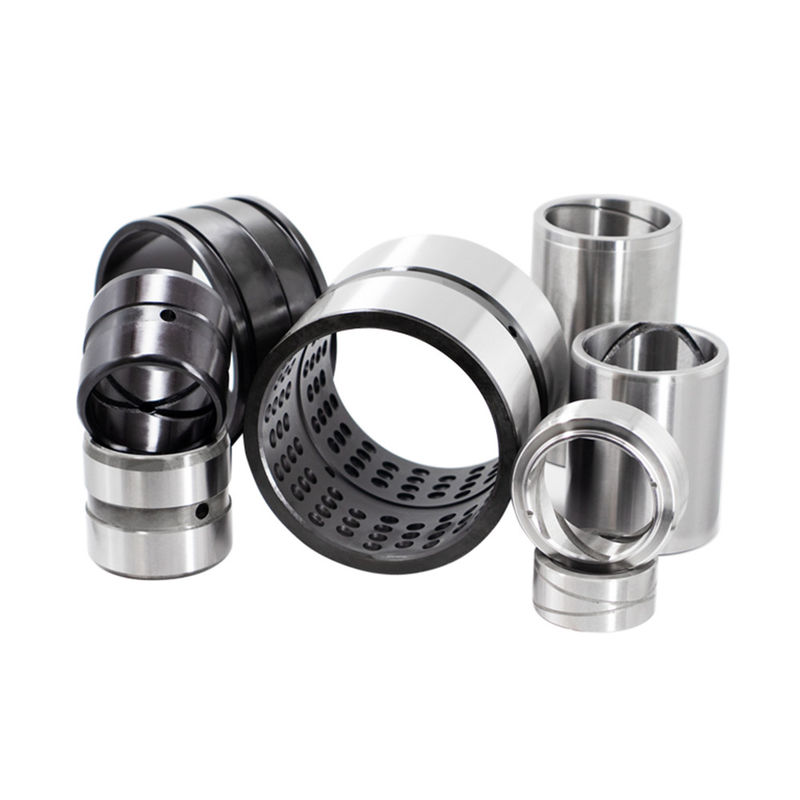

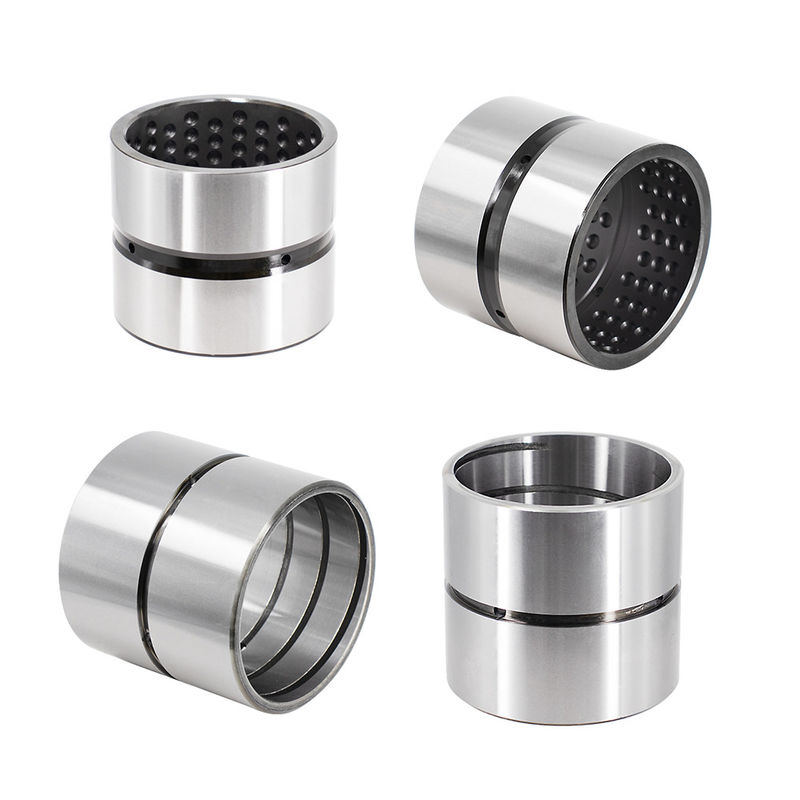

High Precision Loader undercarriage parts heavy equipment bushing GCr15 bushing 20CrMnTi bushing
Undercarriage bushings for excavators are typically made of high-quality materials such as hardened steel or bronze. These materials are chosen for their durability, strength, and resistance to wear, ensuring that the bushings can withstand the demanding conditions encountered during excavation and construction operations.
Characteristics of Undercarriage bushings for excavators
High Strength
Wear Resistance
Corrosion Resistance
Cost-Effective
Self-Lubricating
Good Plasticity
Performance Index
|
|
Data
|
|
Hardness
|
HRC
|
58-62
|
|
Max Load
|
N/mm2
|
250
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Performance Index
|
|
Data
|
|
Hardness
|
HV
|
≥650
|
|
Max Load
|
N/mm2
|
200
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Performance Index
|
|
Data
|
|
Hardness
|
HV
|
≥650
|
|
Max Load
|
N/mm2
|
200
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Material and bushing
characteristics
|
|
value
|
Company
|
value
|
|
Maximum load
|
Mpa
|
100
|
psi
|
145,00
|
|
working temperature
|
℃
|
-40 to 300
|
°F
|
-40 to 572
|
|
Max Linear Velocity
|
m/s
|
0.5
|
fpm
|
100
|
|
Maximum PV Value
|
m/sxMPa
|
1.65
|
pis x fpm
|
48,000
|
|
Minimum hardness of sliding layer
|
HB
|
210
|
HB
|
210
|
|
Minimum hardness of dual parts
|
HRC
|
40
|
HRC
|
40
|
