Place of Origin:
Shandong, China
Brand Name:
sennai
Model Number:
001

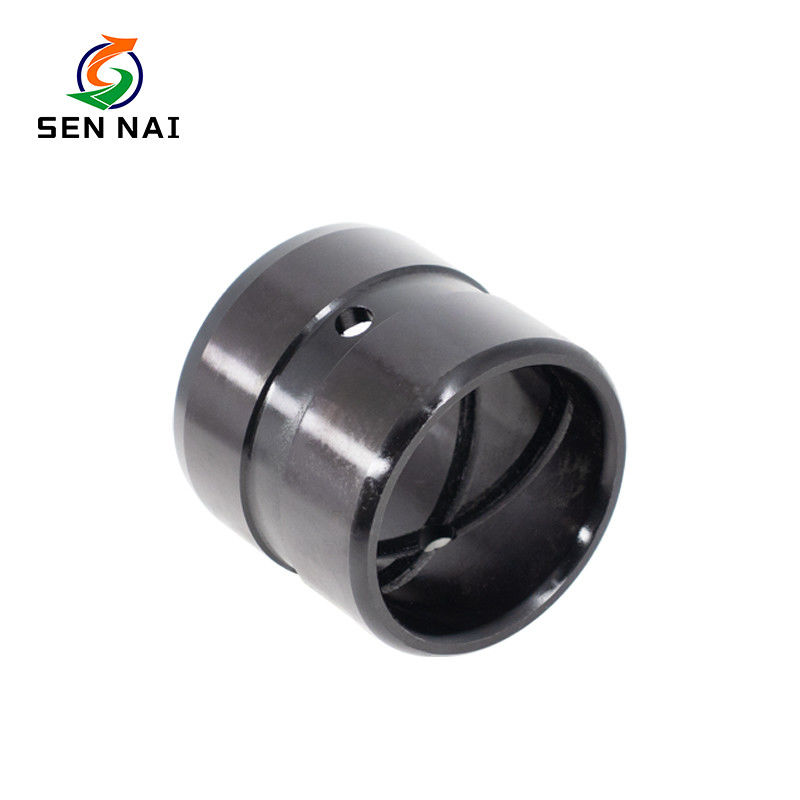

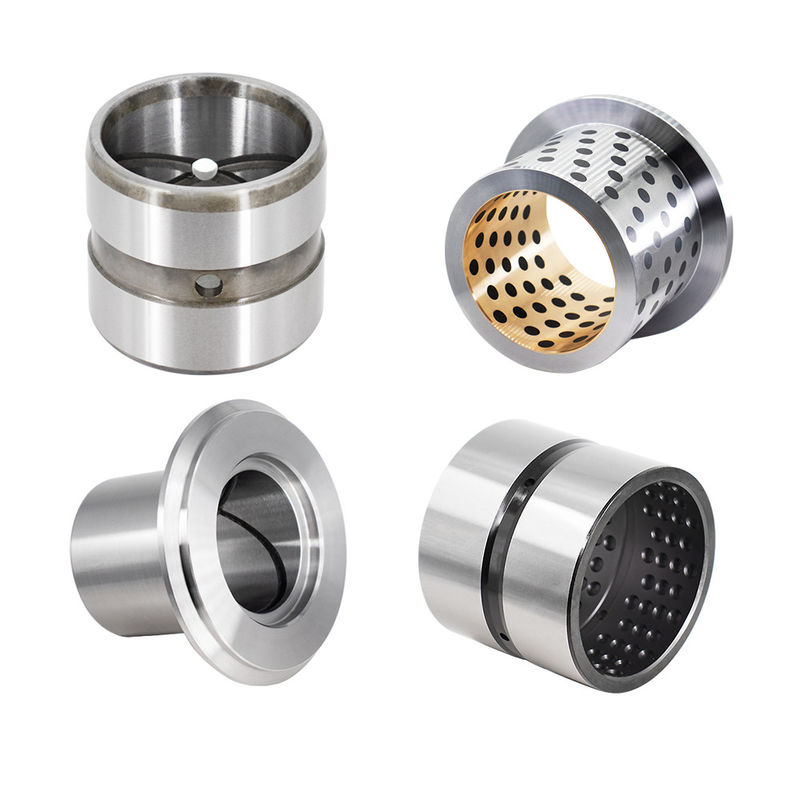

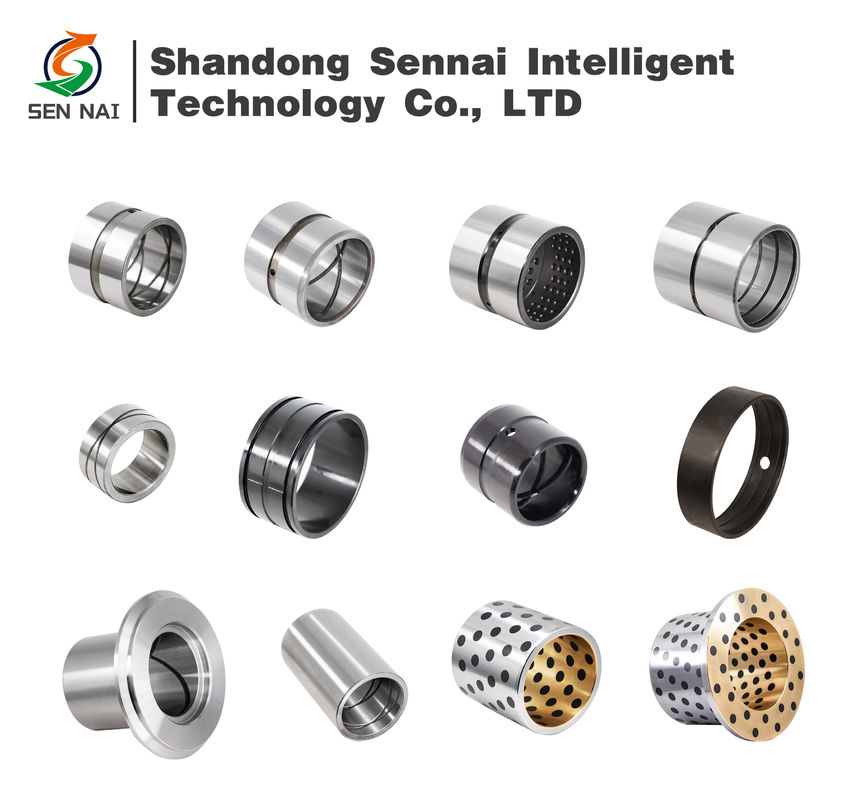

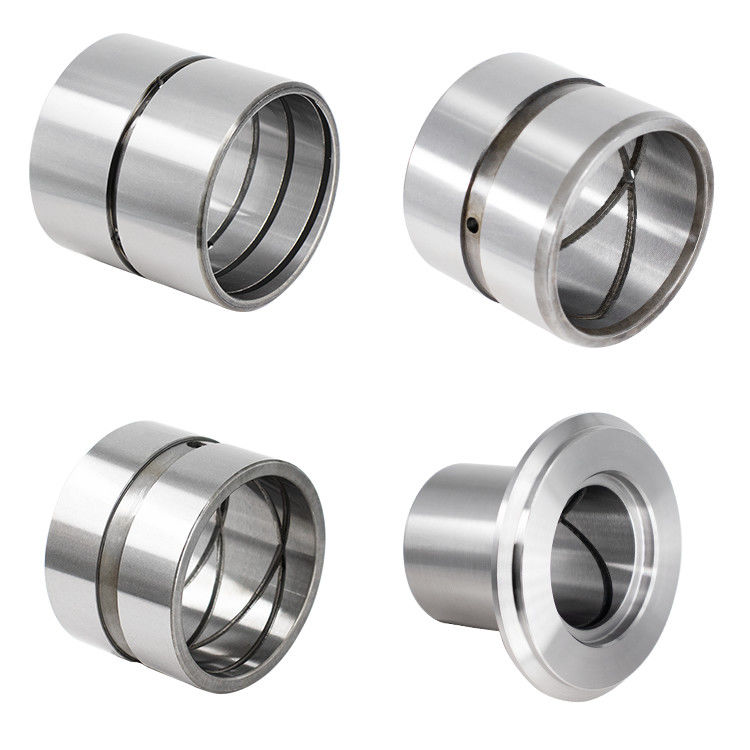

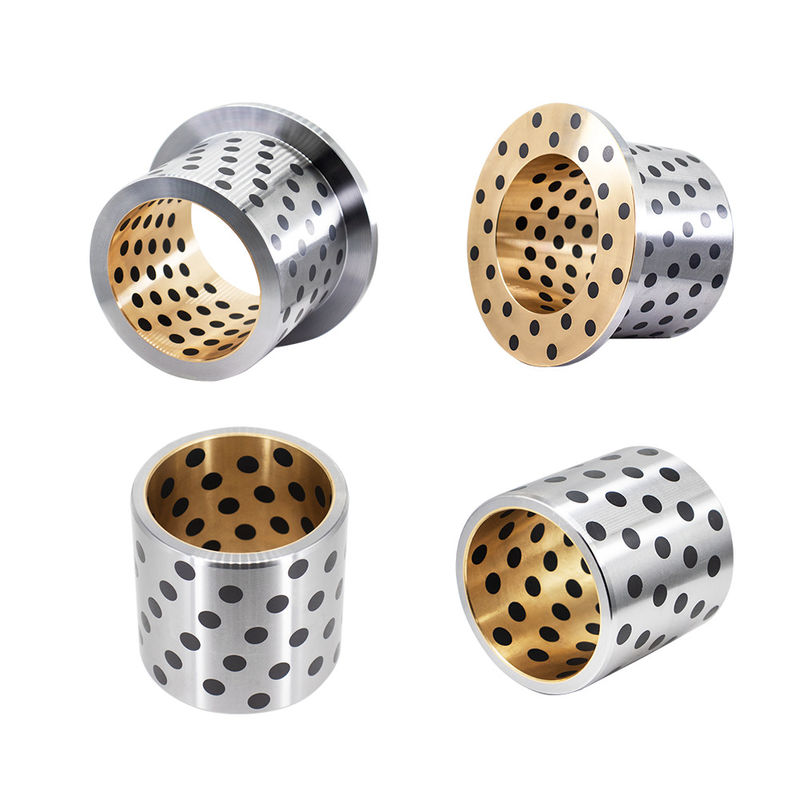

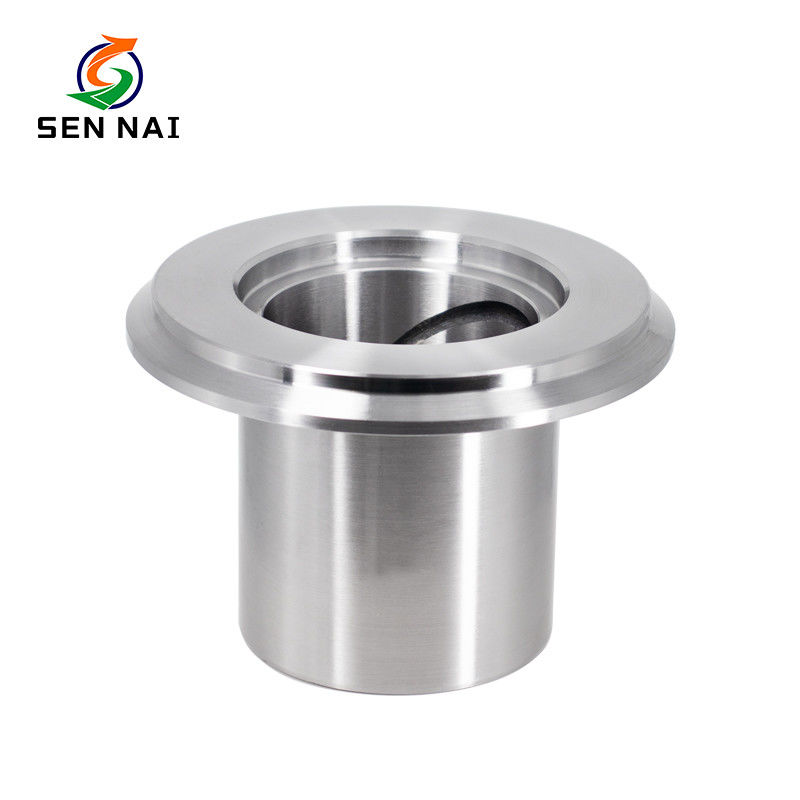

Oil Immersed Sintered Bushing Oil Free High Temperature Industrial Equipment Bushing
Carbon steel bushings are mechanical devices that are used to reduce friction and wear between two moving parts. They are typically made from carbon steel, which is a high-strength and durable type of steel. Carbon steel bushings are commonly used in various industrial applications, such as automotive, aerospace, and machinery.
One of the main advantages of carbon steel bushings is their high load-carrying capacity. They are able to withstand heavy loads without bending or deforming, making them ideal for applications where there is significant weight or pressure involved.
Carbon steel bushings also have excellent wear resistance. They can handle constant movement and abrasion without wearing down, which helps to prolong the lifespan of the equipment they are used in.
In addition, carbon steel bushings can handle a wide range of temperatures and environments. They can withstand both high and low temperatures without losing their strength or performance. They are also resistant to corrosion, making them suitable for use in harsh or corrosive environments.
Overall, carbon steel bushings offer a cost-effective and reliable solution for reducing friction and wear in various industrial applications. Their high load-carrying capacity, wear resistance, and ability to withstand harsh environments make them a popular choice for many industries.
Performance Index
|
|
Data
|
|
Hardness
|
HRC
|
58-62
|
|
Max Load
|
N/mm2
|
250
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Performance Index
|
|
Data
|
|
Hardness
|
HV
|
≥650
|
|
Max Load
|
N/mm2
|
200
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Performance Index
|
|
Data
|
|
Hardness
|
HV
|
≥650
|
|
Max Load
|
N/mm2
|
200
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
Material and bushing
characteristics |
|
value
|
Company
|
value
|
|
Maximum load
|
Mpa
|
100
|
psi
|
145,00
|
|
working temperature
|
℃
|
-40 to 300
|
°F
|
-40 to 572
|
|
Max Linear Velocity
|
m/s
|
0.5
|
fpm
|
100
|
|
Maximum PV Value
|
m/sxMPa
|
1.65
|
pis x fpm
|
48,000
|
|
Minimum hardness of sliding layer
|
HB
|
210
|
HB
|
210
|
|
Minimum hardness of dual parts
|
HRC
|
40
|
HRC
|
40
|
